Help CenterHelp Center / Tax and compliance · Reference
Connect a receipt printer for invoices and KOTs, and choose the paper width.

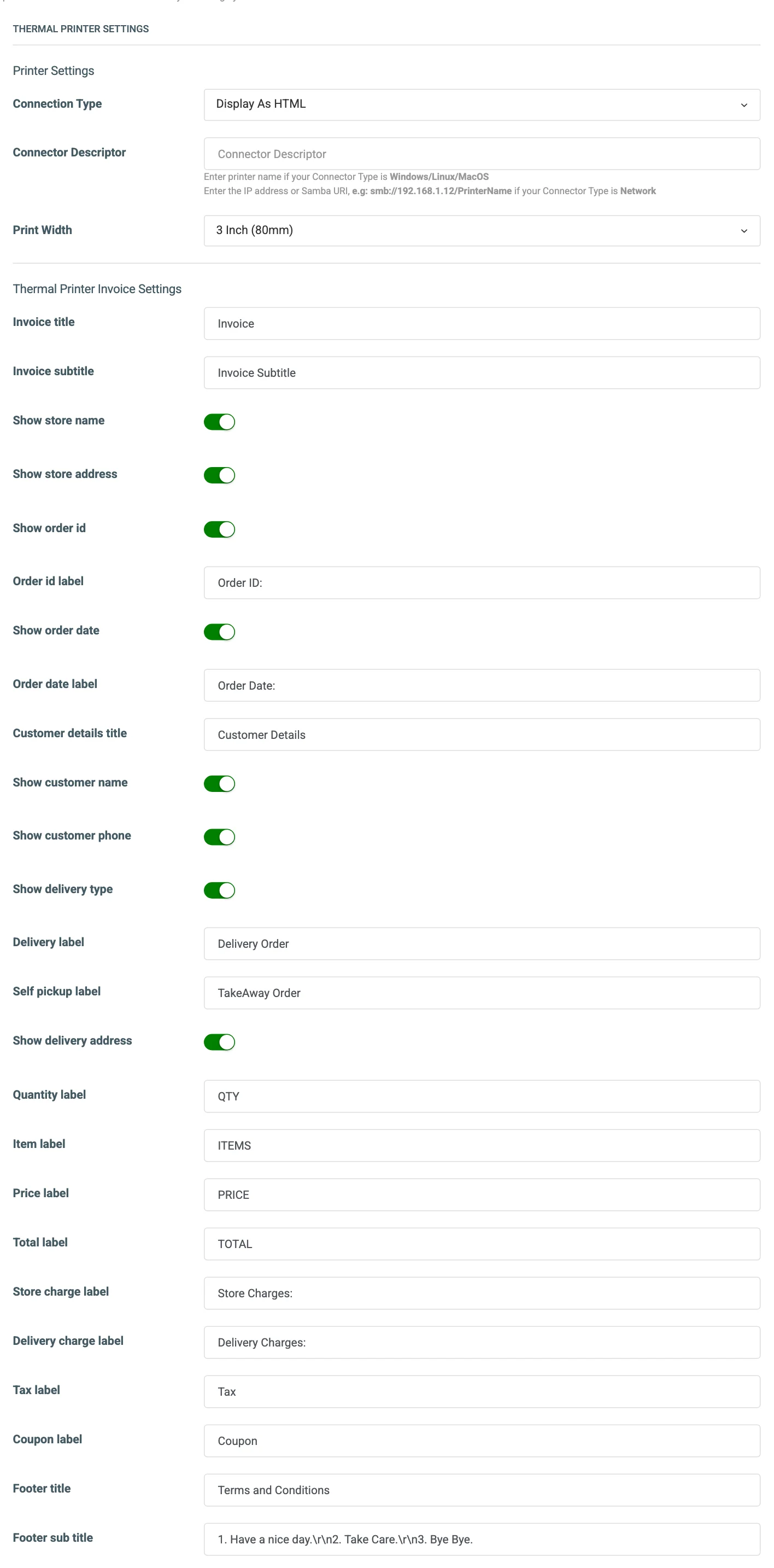

The Thermal Printer Settings tab is under Shop › Settings. It is used only when an invoice or KOT is set to the Thermal Printer template. Select Save Settings after any change.
| # | Field | What it does | Starts as |
|---|---|---|---|
| 1 | Connection Type | How the receipt reaches a printer. See the options below | Display As HTML |
| 2 | Connector Descriptor | The printer's name or address, depending on the connection type | Empty |
| 3 | Print Width | Paper width: 3 Inch (80mm) or 2 Inch (58mm) | 3 Inch (80mm) |
| Option | What to put in Connector Descriptor | What happens when you print |
|---|---|---|
| Display As HTML | Nothing | The receipt opens as a page in your browser. Print it from there |
| Windows | The printer name | The receipt is sent to that printer |
| Linux or MacOS | The printer name | The receipt is sent to that printer |
| Network | The IP address of the printer | The receipt is sent to that address |
The printer is used only for documents set to it.
Go to Shop › Settings › Tax Settings.
Set invoice Template to Thermal Printer, KOT Template to Thermal Printer, or both.
Select Save Settings, then print the Invoice or KOT of any accepted order.
What you see after printing:
| Result | Meaning |
|---|---|
| A receipt page opens | Display As HTML is selected |
| Print Request send | The receipt was handed to the printer connection |
| "Connection Failed :" and a reason | The printer could not be reached. Check the type and the descriptor |
The rest of the tab sets the titles, labels and the lines shown on the receipt. See Thermal receipt layout.
