Help CenterHelp Center / WhatsApp and notifications · Reference
The fields of each SMS provider block on the SMS Settings tab, and which ones are required.

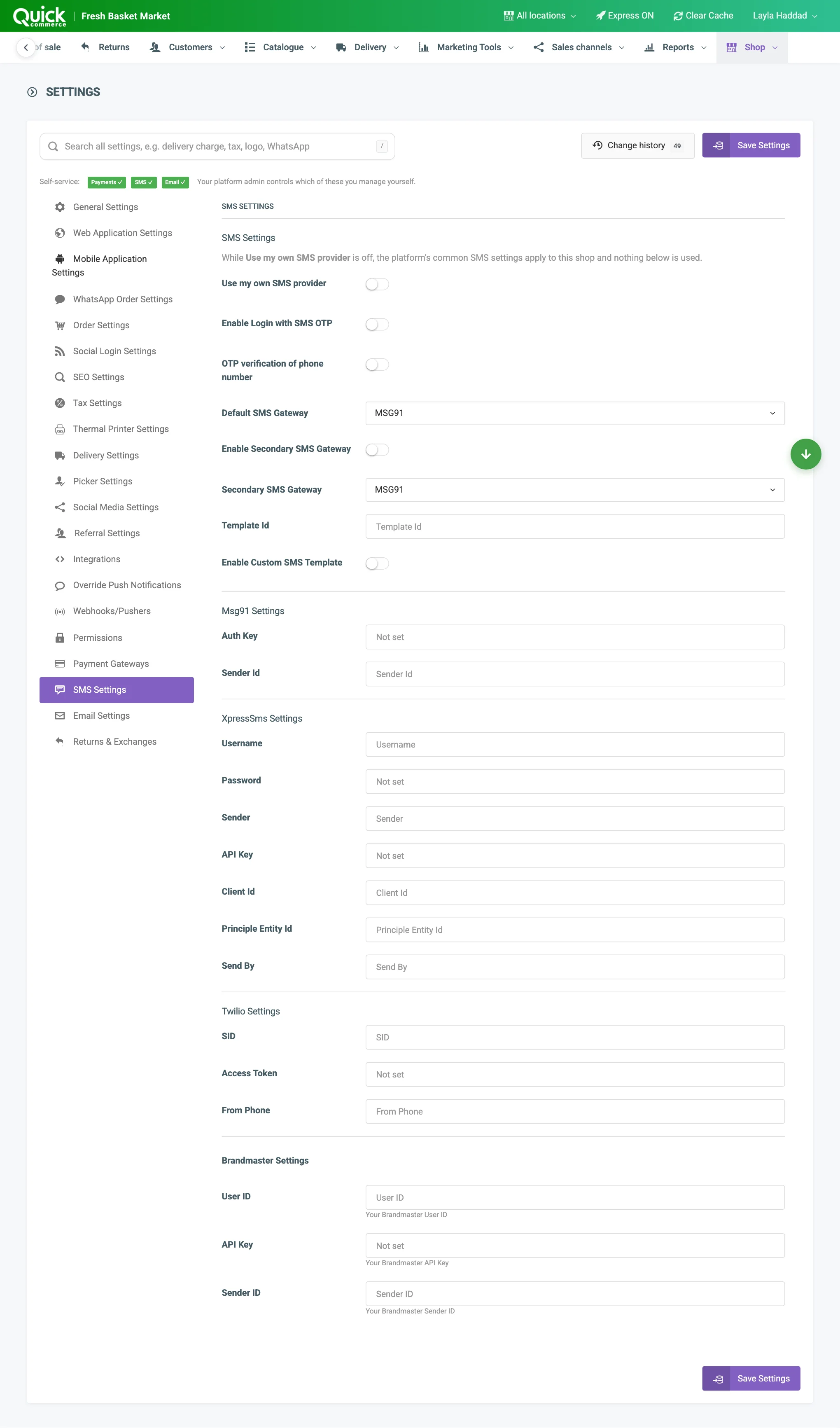

Below the switches, SMS Settings has one block per provider. Fill in only the block of the provider you chose in Default SMS Gateway, and of the secondary one if you use it.
Copy every value from your provider's own dashboard. Fields that hold a secret are write-only: after saving they are not shown again, and leaving one blank keeps the saved value.
| Field | What to enter | Required to send |
|---|---|---|
| Auth Key | The authentication key of your MSG91 account. Secret | Yes |
| Sender Id | The sender ID registered with MSG91 | Sent with every message |
For shops in India, MSG91 messages go through registered templates only:
| Field | What to enter | Required to send |
|---|---|---|
| Username | Your XpressSMS user name | Not used when sending |
| Password | Your XpressSMS password. Secret | Not used when sending |
| Sender | The registered sender | Yes |
| API Key | The API key. Secret | Yes |
| Client Id | The client ID | Yes |
| Principle Entity Id | Your registered entity ID | Sent with every message |
| Send By | The business name that fills {{SEND_BY}} in the code message | No |
XpressSMS also sends the Template Id from the top of the tab with every message.
| Field | What to enter | Required to send |
|---|---|---|
| SID | The account SID | Yes |
| Access Token | The account's auth token. Secret | Yes |
| From Phone | The Twilio number messages are sent from | Yes |
Twilio is the only provider through which an SMS code is sent to a phone number in another country.
| Field | What to enter | Required to send |
|---|---|---|
| User ID | "Your Brandmaster User ID" | Yes |
| API Key | "Your Brandmaster API Key". Secret | Yes |
| Sender ID | "Your Brandmaster Sender ID" | Yes |
It has no fields. Every message is treated as sent and nothing leaves the platform.
